WUMSTOT 16x24 inch Auto Open Heat Press Machine Pink / Black+Greem user Manual

By WUMSTOT Heat Press Daniel December 29th, 2024 1999 views

⚡️ ELECTRICAL SPECIFICATIONS - 16x24 Dual Plate Pneumatic Auto Heat Press:
Power Requirements:
• Voltage: 110V
• Wattage: 2000W
• Current: 20A circuit required
• Plug Type: US standard 3-prong power plug
💡 Important Setup Note:
Ensure your electrical circuit has a 20-amp breaker to safely operate this machine. Standard household 15-amp circuits may not be sufficient.
⚠️ Pre-Installation Check:
✓ 110V power supply
✓ 20A circuit breaker
✓ US standard outlet
✓ Dedicated circuit recommended
For optimal performance and safety, we recommend:
• Dedicated power line
• Professional electrical inspection if unsure
• No sharing circuit with other high-power devices
Now let's began：
1，How to Set Temperature and Time

2，How to Easily Adjust Pressure
- Key steps for adjusting pressure:
"Step 1: Close the upper heating platen completely"
"Step 2: Gently lift the upper platen open slightly"
"Step 3: Adjust the pressure knob - turn left to decrease, right to increase pressure"

2-1 , 16x24 Auto Open Heat Press Machine – Magnet will not work to keep it closed (Easy Solution!)

3，Hidden feature: Emergency Stop Function
If you set the countdown timer to 20 seconds and want to open the upper heating platen at 10 seconds, simply tap the "-" key, and the upper platen will open. This is very useful when you're first testing the machine. Please see the Video ↓

4, How to reset the counter to zero

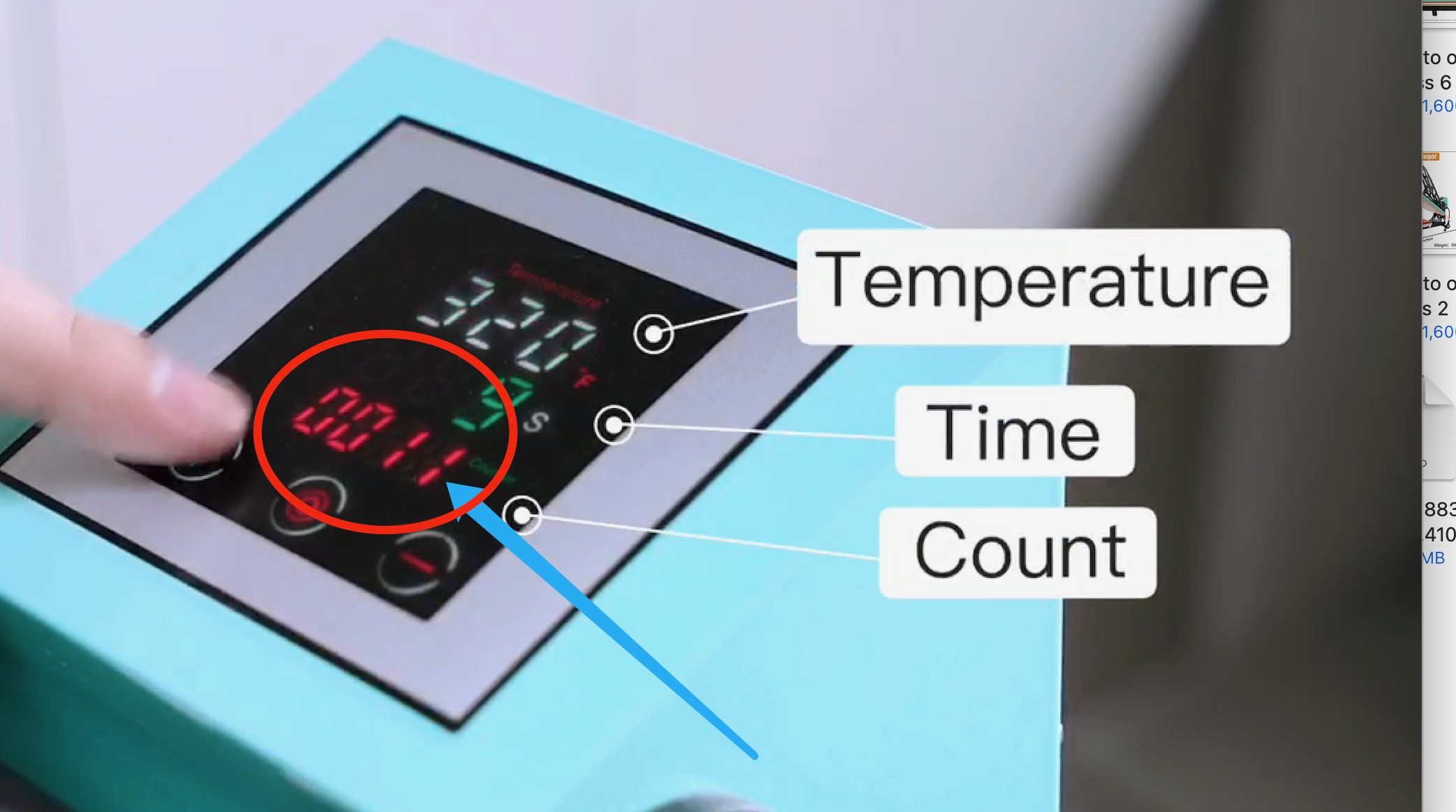

- The red number below the temperature and time on the digital control screen shows the total number of presses. When you want to reset it to zero, press and hold the "—" key until you see the red number return to zero, then release.

5, How to change the power switch:
1. Please turn off the power to operate
2. Before opening the cover and unplugging the wires on the original switch, please take a photo or record a video to record the original wiring sequence.
3. After installing the switch, please be sure to plug the wires back in the original sequence.

6, About lifetime after-sales service:
We want invite you to join our Facebook after-sales group to enjoy lifetime service.
if you want to enjoy after service.
The fast join group link is:
https://www.facebook.com/share/g/15KN2bBHM1/?mibextid=wwXIfr

7, Learn More: About Heat Press DTF or Sublimation Materials - Temperature and Time Settings for Different Fabrics:
1, About Heat Press DTF Materials - Temperature and Time Settings for Different Fabrics
2, Sublimation Temp and Time

If you need Heat Press Machines in other sizes, please browse our product list:
MORE WUMSTOT COMMERCIAL PNEUMATIC HEAT PRESS

	31x39 Hand Heat Press Click to See	16x24 Dual Platen with IP Click to See	16x24 Dual Platen Click to See	16x24 Auto Open Dual Click to See	24x32 Large Heat Press Click to See	24x32 Hand Heat Press Click to See	16x32 Hand Heat Press Click to See
Customer Reviews	17	17	17	4	1	1	—
Price	$2,839.95	$1,849.95	$1,599.95	$889.95	$2,349.95	$1,769.95	$849.95
Heat Plate Size(in):	31x39 with Slide-Out Base	16x24 Pneumatic Dual Platen	16x24 Pneumatic Dual Platen	16x24 Auto Open Dual Platen	24x32 Pneumatic Large Platen	24x32 in	16x32 in
Infrared Positioning:	✘	✔	✘	✘	✘	✘	✘
Movable Stand with Roller	✔	✔	✔	✘	✔	✘	✘
2 Minutes Rapid Heating	✔	✔	✔	✔	✔	✔	✔
Voltage(V):	220 V	110 V	110 V	110 V	220 V	110 V	110 V
Rated Power (KW):	8	2	2	2	6	4.5	2.6
Is It with a Plug	✘	✔	✔	✔	✘	✘	✔
Timer Range:	1-999 Seconds	1-999 Seconds	1-999 Seconds	1-999 Seconds	1-999 Seconds	1-999 Seconds	1-999 Seconds
Expert U.S. Support	✔	✔	✔	✔	✔	✔	✔
Digital Control:	✔	✔	✔	✔	✔	✔	✔
